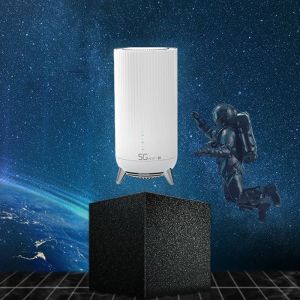

WiFi 6 Dual Band 5G Router CP02 IDU DC 12V 2A CE Certificated

5G CPE CP02 Specifications
Product Name: 5G CPE IDU

Model: CP02
Features

Main features:WiFI6 11AX protocol,5G CPE, TR069
Hardware specifications:
Master control

5G NR Chip: UNISOC IVY 510, dual-core ARM Cortex-A55, up to 1.35GHz
Wi-Fi Chip: MT7621A+MT7905DAN(2.4G 5.8G 2T2R)+MT7975DN(FEM)
FLASH/ Memory: 1Gbit nand Flash/256MB DDR3
Antenna: 2.4G:2T2R 5.8G: 2T2R 4G:4T4R
PCBA

WAN/LAN port: 10/100/1000Mbps RJ45*3 8-pin RJ45 Giga port
USB: USB2.0 *1
Power: DC 12V/2A
Antenna: 2.4G:2T2R , 5.8G: 2T2R, DFS 1R,built-in antenna gain 2-3dBm, 5G 6R6T built in antenna,gain is not less than 4dBm
Indicator lights: POWER indicator light(blue),WiFi indicator light(blue),5G networking indictor light(3-color light),USB indicator light(blue)
Network port indicator lights: Yellow green indicator light
Buttons: 1*factory reset(Restart within 3s, and restore factory settings after 3s)
1*power button: Press briefly to turn on, then press briefly to turn off
Wireless

5G/4G/3G Frequency: NR(Rel.15):n1,n28,n41,n78,n79
LTE(Rel.13): b1,b3,b5,b8,b34,b38,b39,b40,b41
WCDMA: b1,b5,b8
5G NA/NSA

SA: 2T4R NSA: 1T2R
MIMO LTE 2*2, NR 4*4
SA: UL up to 1Gbps, DL up to 2Gbps, 256QAM
NSA:2T4R NSA: 1T2R
MIMO LTE 2*2, NR 4*4
SA: UL up to 525Mbps, DL up to 2.9Gbps, 256QAM
WiFi Frequency range: 2.4~2.4835GHz,5.150GHz ~ 5.850GHz
Wireless Speed: 11b:1/2/5.5/11Mbps
11g:6/9/12/18/24/36/48/54Mbps
11n:max up to 600Mbps
11ac:max up to 1200Mbps
11ax:max up to 1800Mbps
Working frequency: 2.4G:1~13(optional)
5.8G:36,40,44,48,52,56,60,64,149,153,157,161,165(optional)
Spread spectrum technology: DSSS(Direct sequence spread spectrum)
Data modulation mode: 802.11a: OFDM (BPSK,QPSK,16-QAM,64-QAM)
802.11b: DSSS (DQPSK, DBPSK, CCK)
802.11g: OFDM (BPSK, QPSK,16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)
802.11ac: OFDM (BPSK, QPSK,16-QAM, 64-QAM, 256-QAM)
802.11ax: OFDM (BPSK, QPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM)
Medium access protocol: CSMA/CA with ACK
data encryption: WPA-PSK/WPA2-PSK,WPA/WPA2
Power (medium power): 2.4G: 11b: 20dBm ± 1dBm@11Mbps
11g: 18dBm ± 1dBm@54Mbps
11n: 18dBm ± 1dBm@MCS7
5.8G: 11ac (VHT80): 16dBm ± 1dBm
11AX(VHT80):11dBm± 1dBm
receiving sensitivity: 2.4G: 11b: <-87dbm@11Mbps；
11g: <-71dbm@ 54Mbps；
11n (HT20): ≤ -68dBm@MCS7
11n (HT40): ≤ -65dBm@MCS7
5.8G: 11an (HT20): ≤ -69dBm@MCS7
11an (HT40): ≤ -65dBm@MCS7
11ac (VHT80): ≤ -55dBm@MCS9
11ax:(VHT160):-60dBm@MCS9
cooling fin: The whole heat sink covers the main control chip
LED lights

Power(blue): Power indicator, blue indicator connected to power is always on
WiFi(blue): Wireless indicator (always on, flashing data transmission):
If any WiFi band of 2G and 5G is turned on, the indicator light will be turned on, and it will be turned off after all WiFi is disabled
5G(blue green red): The 5G network is always on blue, the 4G network is always on green, the 3G/2G network is always on red, and the network failure is flashing red
USB(blue): Light is always on when USB access, and the light flashes with data flow
indicator lights:LAN/WAN

Green light: the connection status indicator is green and always on. If it is not on, it means that the connection is not successful.
Yellow light: it means the light with data flowing in and out. Blinking indicates that data is being transmitted.
indicator lights:LAN

Green light: the connection status indicator is green and always on. If it is not on, it means that the connection is not successful.
Yellow light: it means the light with data flowing in and out. Blinking indicates that data is being transmitted.
